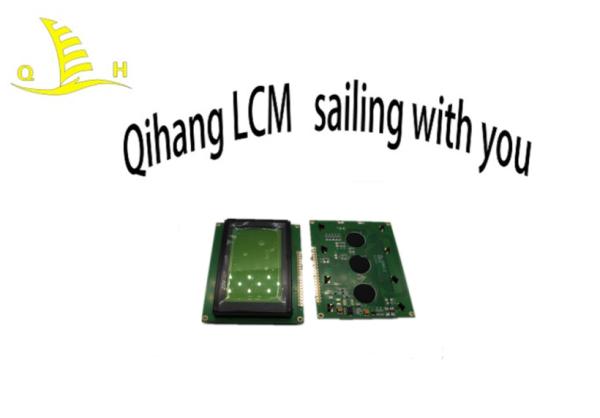

Dynamic 12864 Dots Matrix STN FSTN Alphanumeric LCD Display Module
Product Detail
| Name | Dynamic 12864 Dots Matrix STN FSTN Alphanumeric LCD Display Module |
| Applicaion | Alll kinds of meters |
| Display Content | digits+dots+patterns |
| Operating voltage | 3.3V / 5.0V |
| Driving method | according to your request |
| Viewing angle | 6 H |
| LCD mode | STN LCD module |
| Display mode | Positive / Transflective |
| Conecting mode | Metal pin |
| Backlihgtlight | White |
| Voltage driving | Dynamic or static |
| DOTS | 128*64 |
| Operating voltage | -15℃-65℃ |
| Storage voltage | -20℃-70℃ |
| Package | COB |
| OEM/ODM | Accecpted |

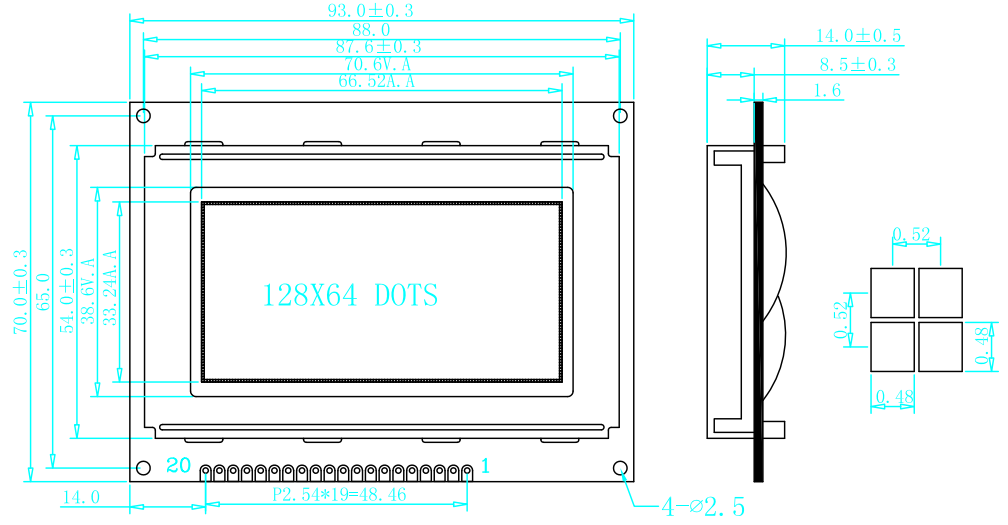

| Dimension | 93.0 * 70.0 * 14.0 mm |
| V.A. | 70.6 * 38.6 mm |
| System design | Lcd module related system software and hardware design accepted |
| Warranty | 12 moths free |
| Backlight | LED (White) |
| LCD Module type | Metering Module |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
| Cetification | ISO,SGS |
We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Chinapost/HongKong Airmail: 7- 25 working days. At most 45 days.
If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email.
Packaging & Delivery
Lead Time :
| Quantity(Pieces) | 1 - 3000 | >3000 |
| Est. Time(days) | 20 | To be negotiated |
Top 10 Industries of the company
Security Industry, Instrumentation, Industrial Control, Medical Equipment, Financial Industry, Consumer Electronics, Vehicle Instrumentation, Home Appliances Industry, Communications Products, Electrical Industry
Introduction
We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.
1.We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.
2.Character Module series for 8x2, 16x1, 16x2, 16x4, 20x1, 20x2, 20x4 , 40x4 characters
3.Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.
FAQ
Q: Order process.
A: Customers place an order → out of PI → customer payment → confirm receipt and reply delivery
→ we negotiate and confirm shipping method → shipping → tracking logistics → customer confirm receipt.
Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
Q: Payment.
A: T/T , Paypal, Western union, L/C, Credit card, and Cash.
Q:RMA Process
A:The customer submits the return to the salesman (with picture/video/bad sample)
→ the preliminary judgment of the project (all returns or partial returns or direct scrap)
→ confirmation → of the treatment method → confirmation of the mode of transport
→ return → receipt of return analysis And report out
→ confirm the treatment with the customer
Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of LIMITED WARRANTY)
